Fiber Laser Welder 2000w steel Handheld Laser Welding Machine for Stainless Steel Aluminum Metal

Fiber Laser Welder 2000w steel Handheld Laser Welding Machine for Stainless Steel Aluminum Metal

Applicable materials.jpg


Laser Cleaning Machine Application in Stainless steel, Carbon steel, Aluminum, Copper materials, etc. Beautiful weld, fast speed, no consumables, no welding mark, no discoloration, no need to polish later. Can be configured with a variety of Angle nozzle to meet the welding needs of different products.




ModelLS2000W Handheld laser welding machine
Laser sourceIPG, Raycus, MAX, JPT, Reci
Laser device2000W
Laser wave length1080nm
Welding speed range0-120mm/s
Welding gap≤1/5 of the thickness of sheet metal
Fiber lengthStandard 10M
Cooling modeWater cooling
Electromechanical380V/50HZ or 60HZ (customizable)


2kw welding ability
No.MaterialDepth of fusionPenetration thickness
1Stainless Steel≤6mm≤5mm
2Mild steel/Iron≤6mm≤5mm
3Galvanized sheet≤5mm≤4mm
4Aluminum/brass≤4mm≤3mm

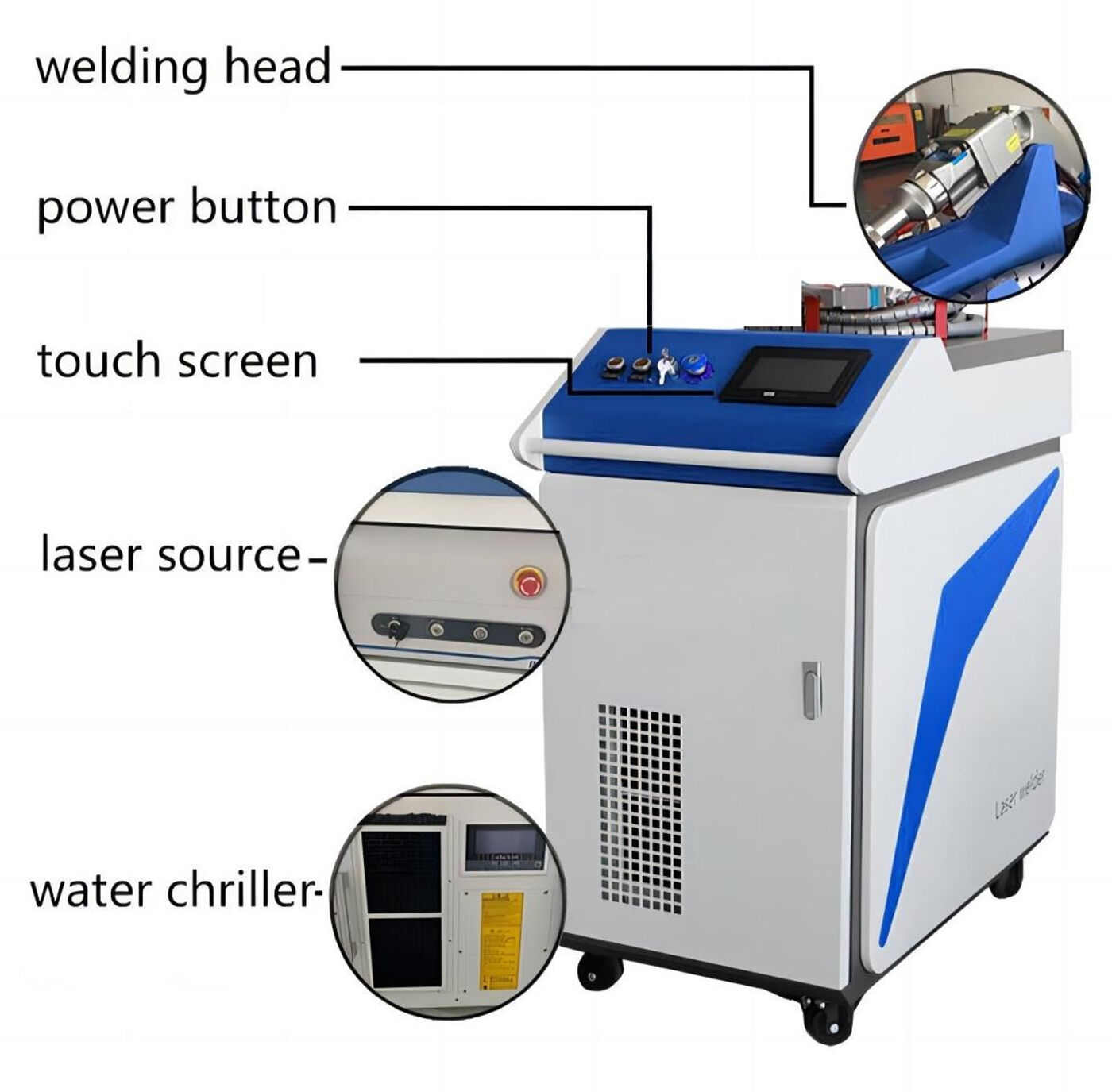

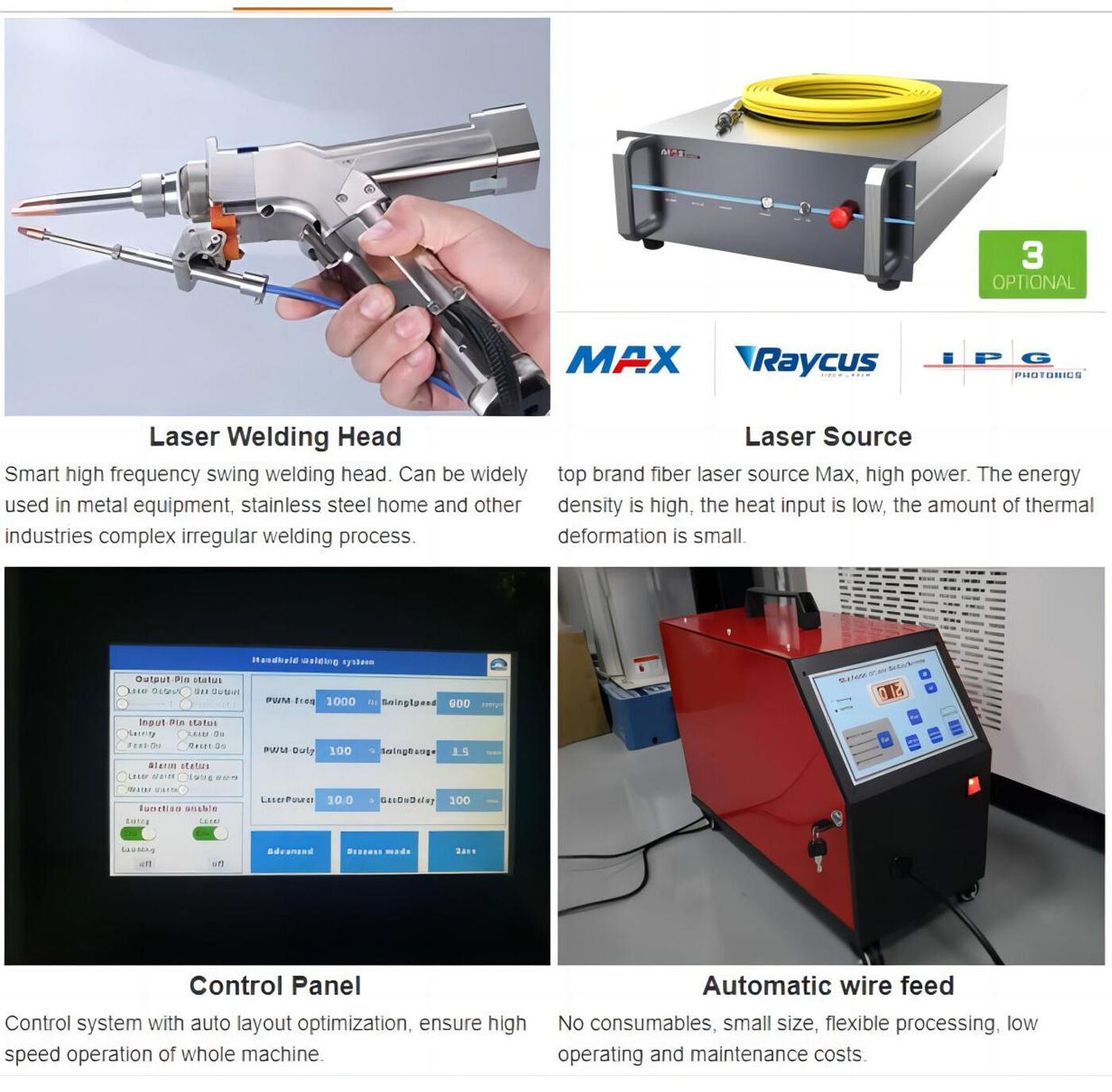

Deatails Images.jpg









Simple operation no need for training

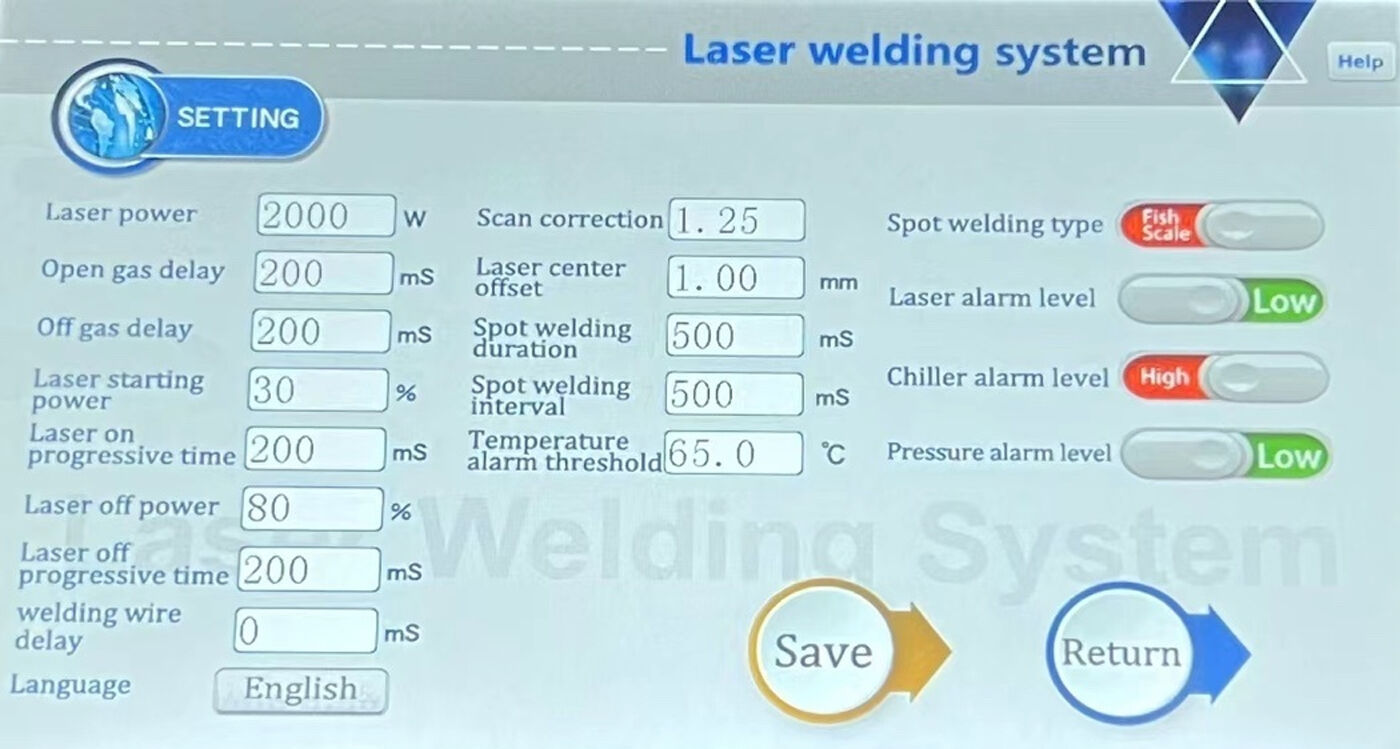

English operation interface, the working status is clear; the operation panel is concise and easy to understand. The monitor support contacts touch and expand the tolerance range of the machined parts and the width of the weld, which solves the disadvantage of small spot size and better weld formation. With multiple safety alarms, it automatically lothe cks light after removing the workpiece, which is safe.

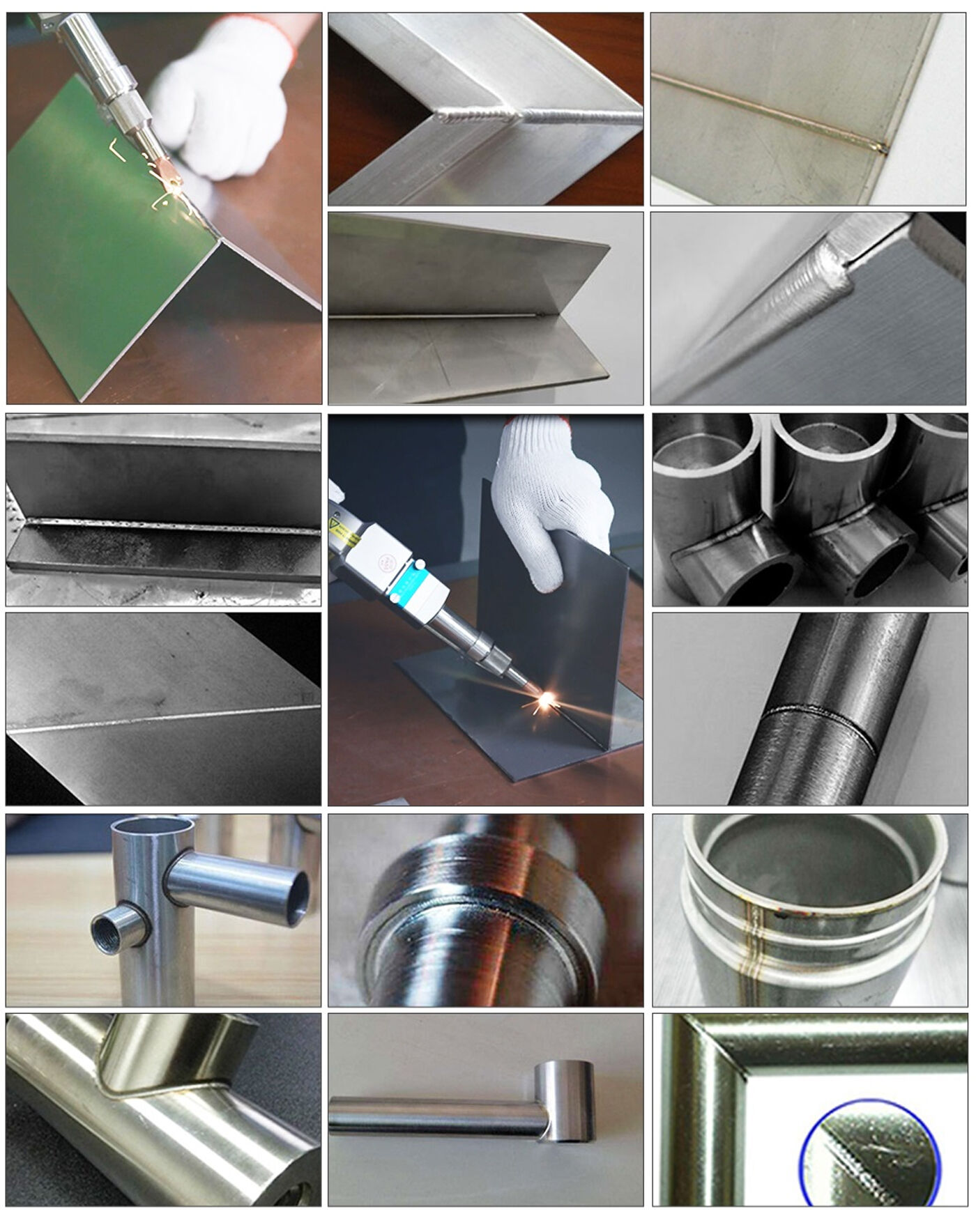

Applicaiton Samples.jpg
