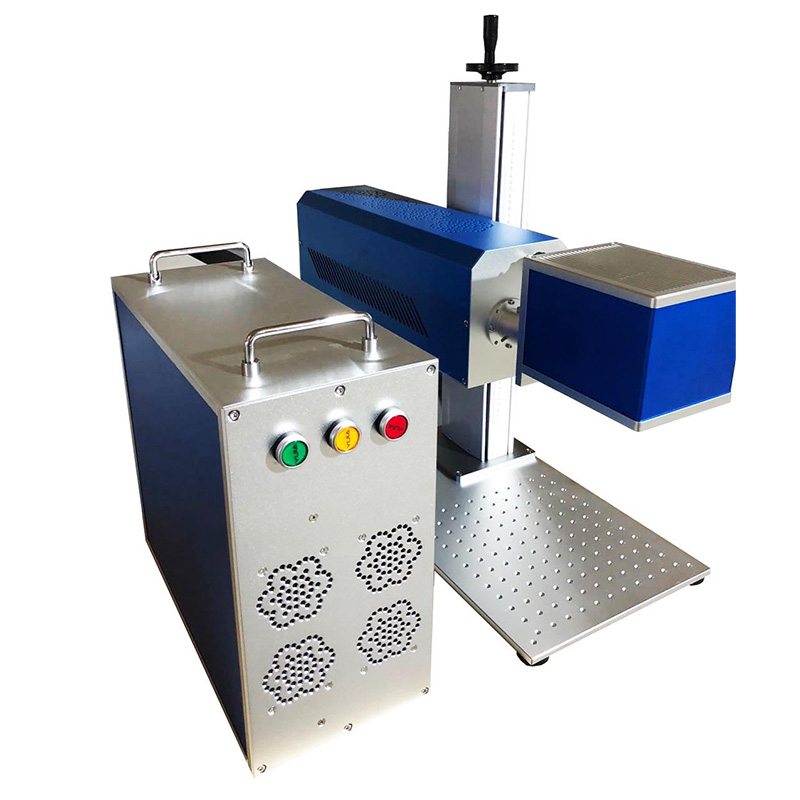

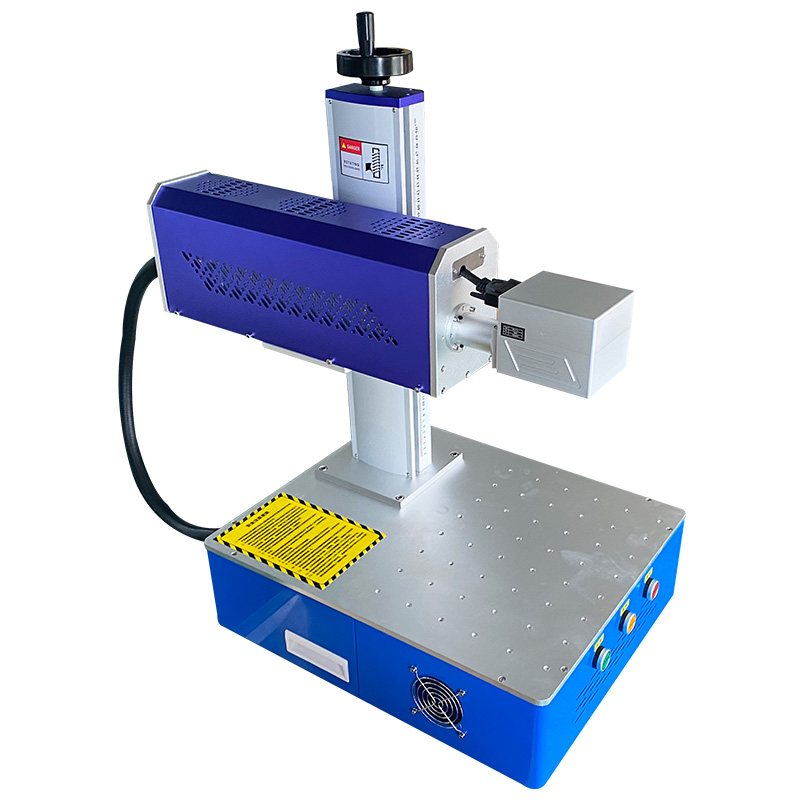

| Product name | CO2 laser marking machine |
| Laser type | CO2 laser (RF metal tube) |
| Laser wavelength | 1064um |
| Power | 12W/30w/50w/100w/150W |
| Standard marking area | 100mm*100mm |
| Optional marking area | 150mm*150mm, 200mm*200mm, 250mm*250mm, 300mm*300mm or custmized size |
| Marking speed | <7000mm/s |
| Repeated accuracy | 0.01mm |
| Minimum line width | 0.01mm |
| Minimum character | 0.2 mm |
| Power supply | AC220V±10% 50Hz or AC110V±10% 60Hz |
| Cooling way | Air cooling for 12W 30W 50W,water cooling above 50W |
| Operation temperature | 0-40ºC |
| Marking content | Graphics, text, bar codes, QR code, date, batch number, serial number etc. |
| Compatible files format | PLT, DXF, AI, DST, BMP, PNG, JPG, JPEG, PNA, TIF etc. |
| Application materials | Wood,Bamboo,Acrylic,Leather,Cotton cloth etc |
