| Working size | 1300*2600mm |
| Cutting depth | ≤25mm（according to material） |
| Laser power | YONGLI AS6 80-130W |
| Laser type | CO2 glass laser tube |
| Laser power supply | 150W |
| Mirror and Lens | 25mm Dia. Si mirror; 20mm Dia. Znse IIV-VI lens |
| Engraving speed | 1-60000mm/min |
| Control system | RDC6442S/RDC6445G RUIDA |
| Control Software | RDWORKS V8 |
| Working Table | Blade or honeycomb working table |
| Laser head | with Pen style Auto focus and red dot positioning |
| Air compressor power | Haili 190W |
| Motor&Driver | Stepper Motor&Driver |
| Exhaust fan Power | 550W-750W |
| Transmission | Italy PEK linear rail+ONK belt |
| Cutting speed | 1-10000mm/min |
| Resolution ratio | ≤0.0125mm |
| Interface | USB2.0 |
| Minimum shaping character | letter 0.5mm, Chinese 0.5mm |
| Cooling type | Circulation water cooling CW5200 |
| Support format | JPG,JPEG, PLT, DST, PLT, BMP, DXF, AI |
| Voltage | 110V/220V 50HZ 60HZ |
| Operating temperature | 0-45C |
| Operating humidity: | 5-95% |
| Warranty | Machine:1 year, Laser tube:12 months |
| N.W/G.W | 950KGS/11000KGS |
| Size | 2.1*3.45*1.35m W*L*H |

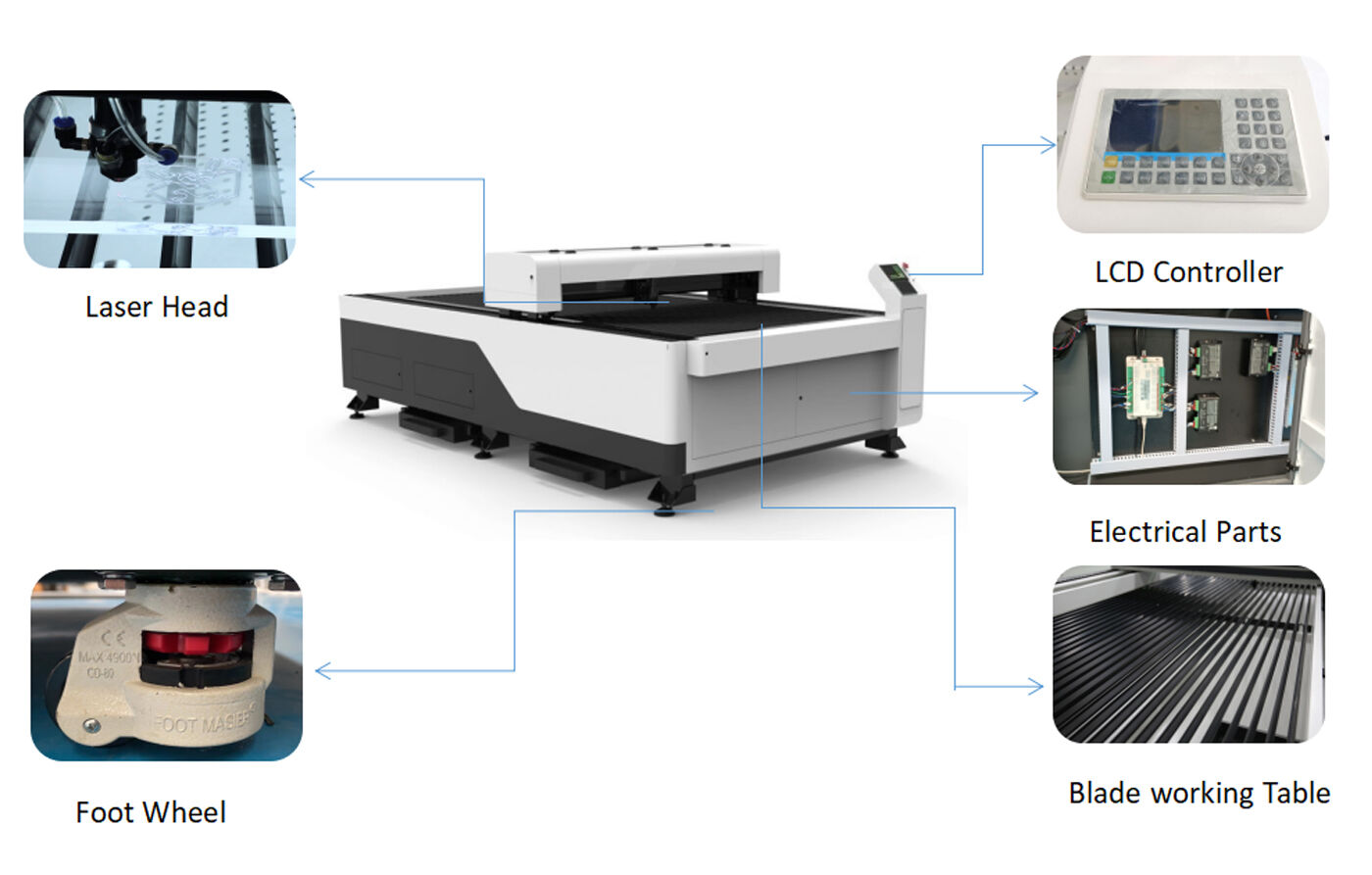

| Easy operation LCD controller
Ruida RDC6442G/S system is a new generation system for 4-Axis control of laser engraving and cutting. Support Multi language. With USB or WLAN Communication port |
Simple Control Software
RDworksV8 software ,support multi-language support file format: JPG,JPEG,BMP, DXF, PLT,AI etc, Communication: 10/100M Ethernet + USB 2.0 Control. |
|
| Powerful and Long Life Laser Tube
Model:AS6 YONGLI;Length:1650mm related power:130W Peak power:160W working current:30mA Diameter:80mm working life:12000hours Warranty:12 months |

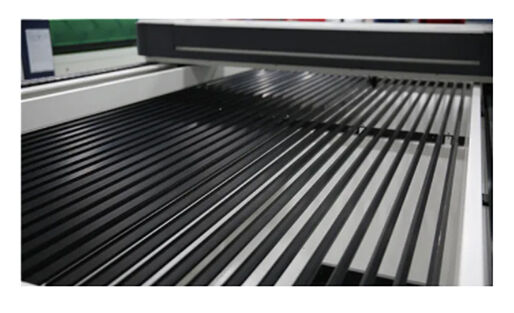

Working Table
Table: honeycomb table or line blade working table
|
|
| Italy PEK linear rail
ransmission: XY PEK linear rail+ONK belt Machine Moving stable
|

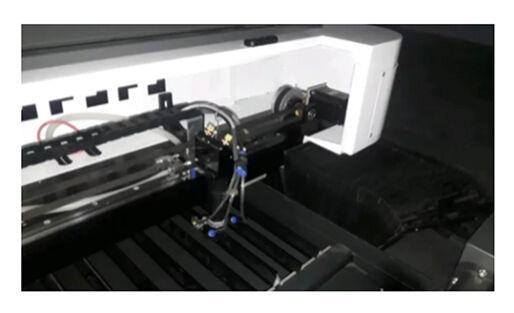

Red dot Positioning and Auto Focus
Red dot positioning: Make start point visible. Auto focus:control the up and down table to ensure the Optimal focal length between the processed materials and the lens.
|
|
| Warning Light
Green light indicates running fine Yellow light indicates standby states Red light indicates a problem with the running machine |
Foot and Wheel
Easy to fix the machine on floor and easy to move the machine to the different place by wheel |
|
Applicable materials:
Flatbed co2 laser cutting machine is applied in garment,leather,cloth toys,computer embroidery cutting ,mould,crafts,bamboo and wood,advertising and building decoration,packaging and printing,paper products,etc.
Applicable industries:
Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry
