| Working size | 1300*900mm |
| Cutting depth | ≤25mm（according to material） |
| Laser power | YONGLI AS6 130W |
| Laser type | CO2 glass laser tube |
| Laser power supply | 150W |
| Mirror and Lens | 25mm Dia. Si mirror; 20mm Dia. Znse IIV-VI lens |
| Engraving speed | 1-60000mm/min |
| Control system | RDC6442S/RDC6445G RUIDA |
| Control Software | RDWORKS V8 |
| Working Table | Up and down table |
| Laser head | with Pen style Auto focus and red dot positioning |
| Protector | XY dust cover protection |
| Safety system | Three light alarm system+case open working stop system |
| Air compressor power | Haili 165W |
| Motor&Driver | Stepper Motor&Driver |
| Exhaust fan Power | 550W |
| Transmission | Italy PEK linear rail+ONK belt |
| Cutting speed | 1-10000mm/min |
| Resolution ratio | ≤0.0125mm |
| Interface | USB2.0 |
| Minimum shaping character | letter 0.5mm, Chinese 0.5mm |
| Cooling type | Circulation water cooling CW5000 |
| Support format | JPG,JPEG, PLT, DST, PLT, BMP, DXF, AI |
| Voltage | 110V/220V 50HZ 60HZ |
| Operating temperature | 0-45C |
| Operating humidity: | 5-95% |
| Warranty | Machine:1 year, Laser tube:12 months |
| N.W/G.W | 450KGS/500KGS |

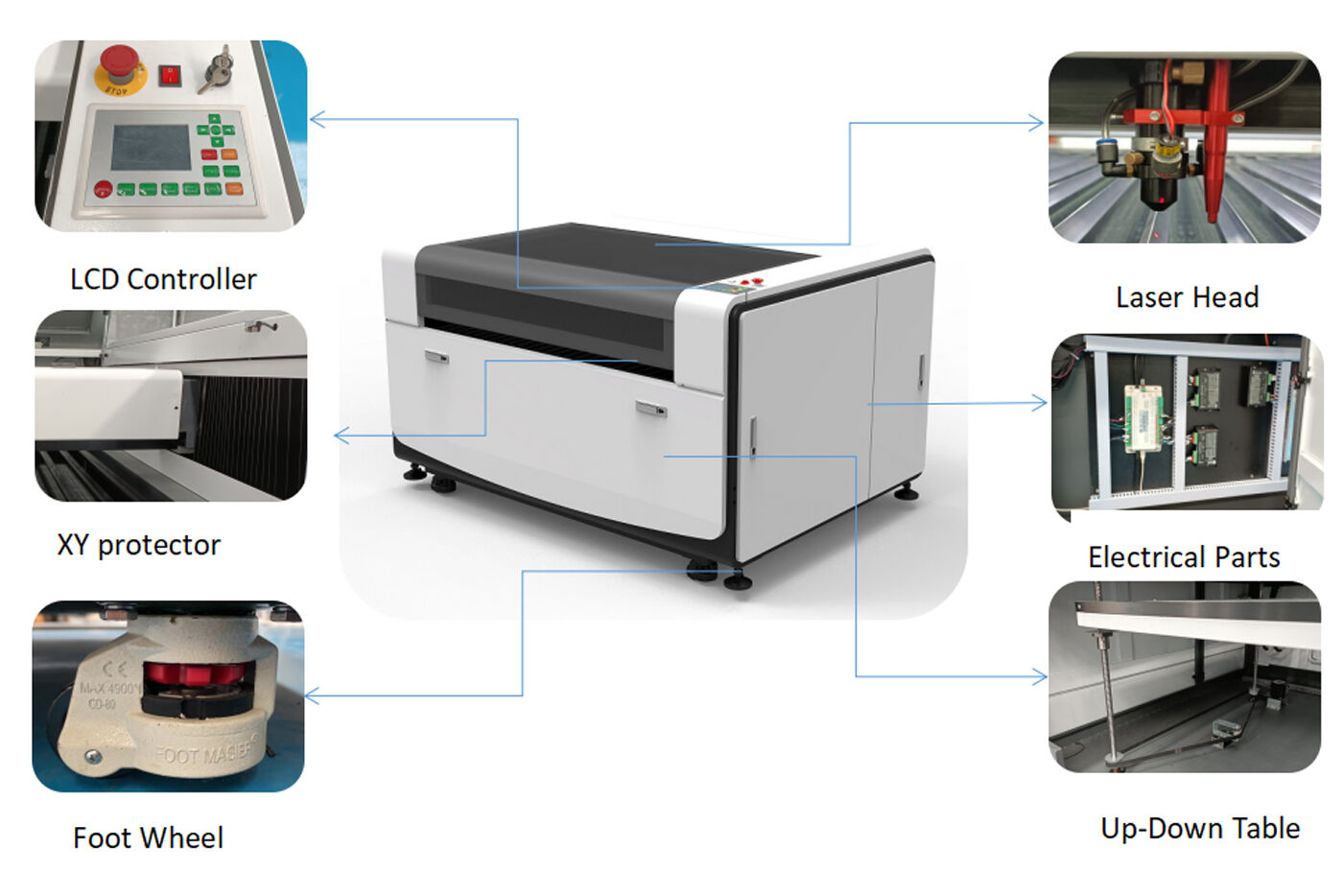

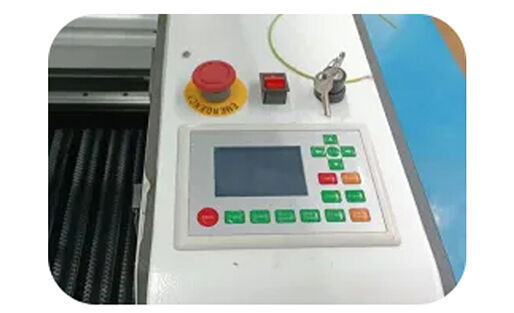

| Easy operation LCD controller
Ruida RDC6442G/S system is a new generation system for 4-Axis control of laser engraving and cutting. Support Multi language. With USB or WLAN Communication port |

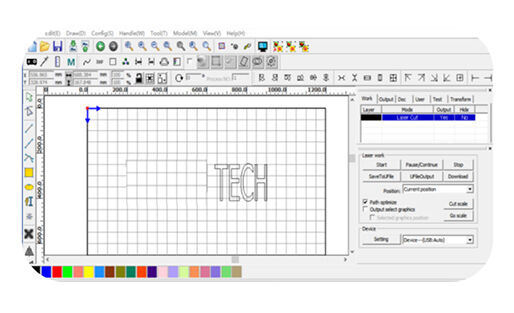

Simple Control Software
RDworksV8 software ,support multi-language support file format: JPG,JPEG,BMP, DXF, PLT,AI etc, Communication: 10/100M Ethernet + USB 2.0 Control. |
|

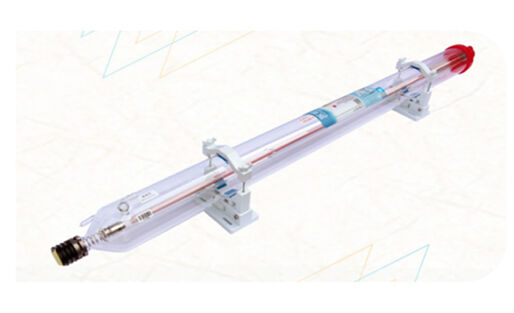

| Powerful and Long Life Laser Tube
Model:AS6 YONGLI;Length:1650mm related power:130W Peak power:160W working current:30mA Diameter:80mm working life:12000hours Warranty:12 months |

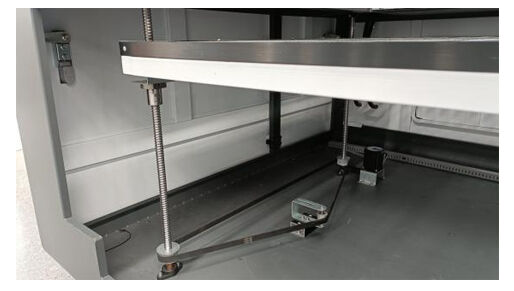

Double Table
Table: double table: honeycomb+sword blade up-down motor: two phase stepper motor driving. combined to auto focus function transmission: high precision ball screw
|
|

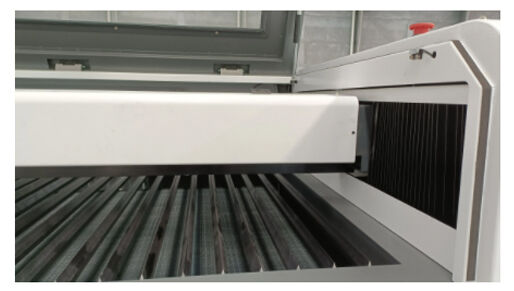

| XY Dust Protector
X axis: steel case protect linear rail and belt Y axis: dust cover protect dust and water out of transmission
|

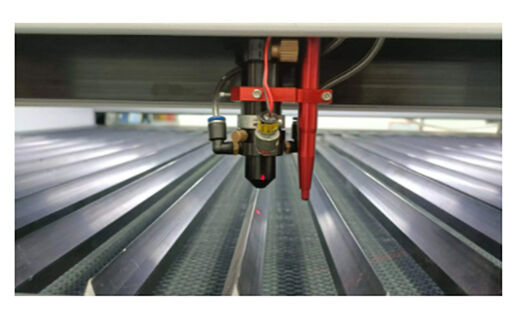

Red dot Positioning and Auto Focus
Red dot positioning: Make start point visible. Auto focus:control the up and down table to ensure the Optimal focal length between the processed materials and the lens.
|
|

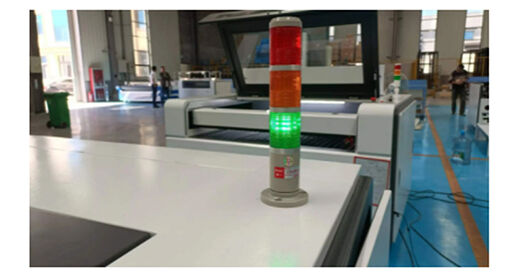

| Warning Light
Green light indicates running fine Yellow light indicates standby states Red light indicates a problem with the running machine |

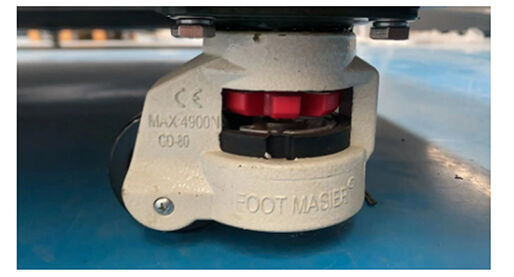

Foot and Wheel
Easy to fix the machine on floor and easy to move the machine to the different place by wheel |
|

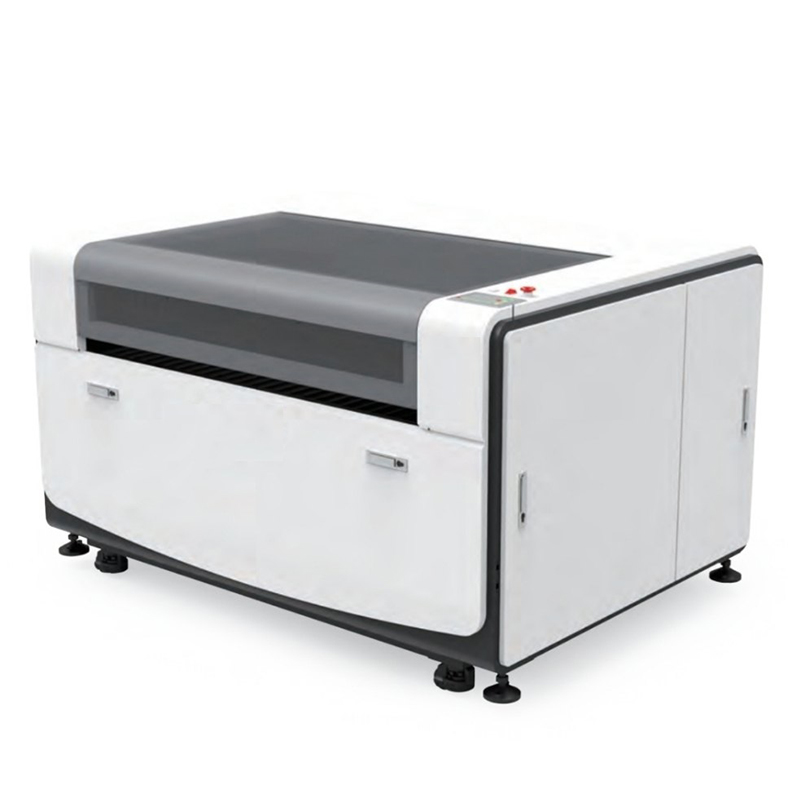

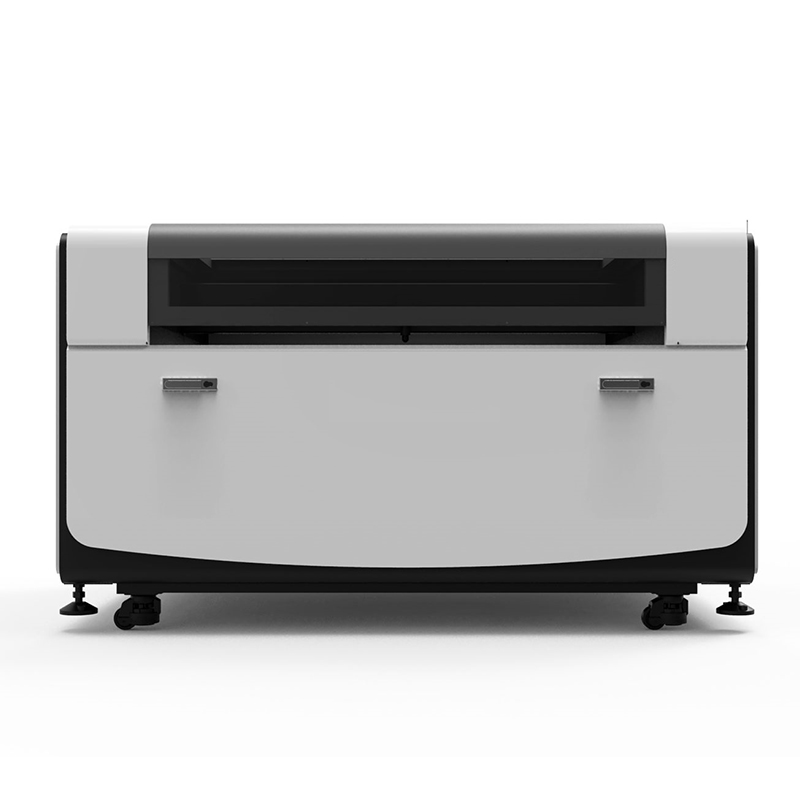

Application

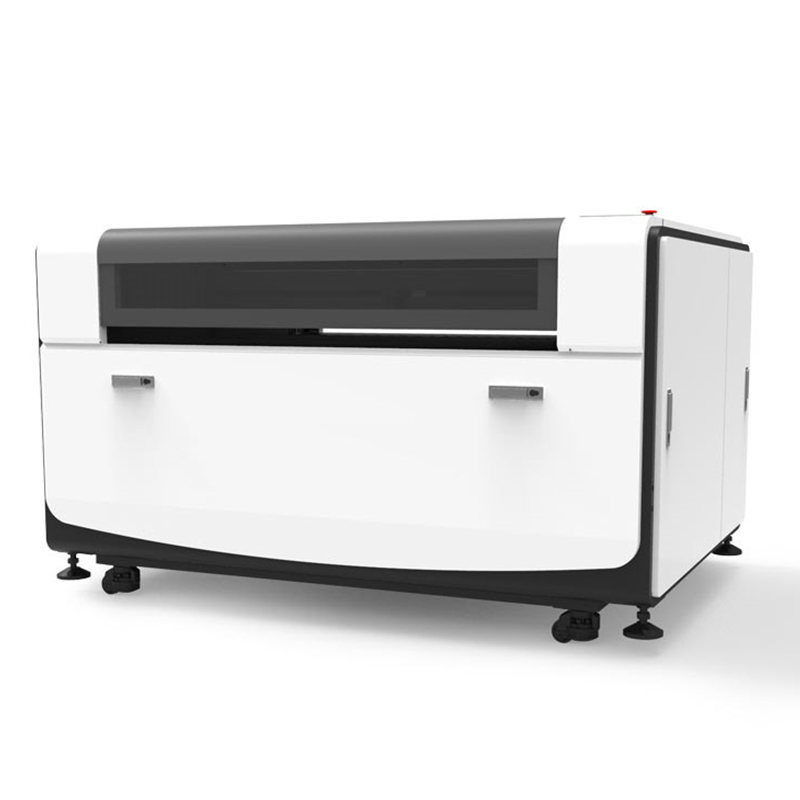

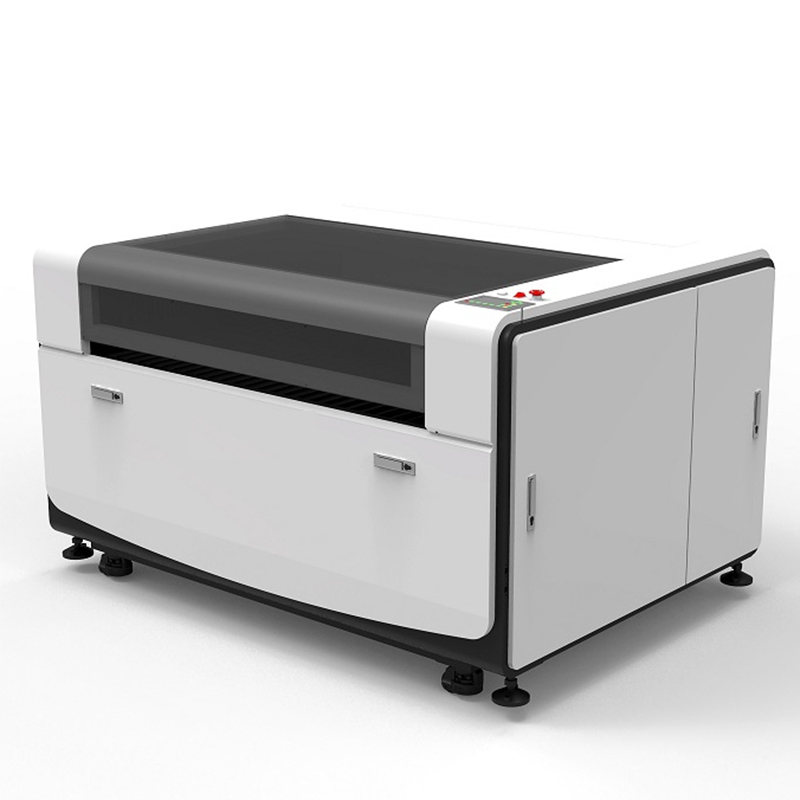

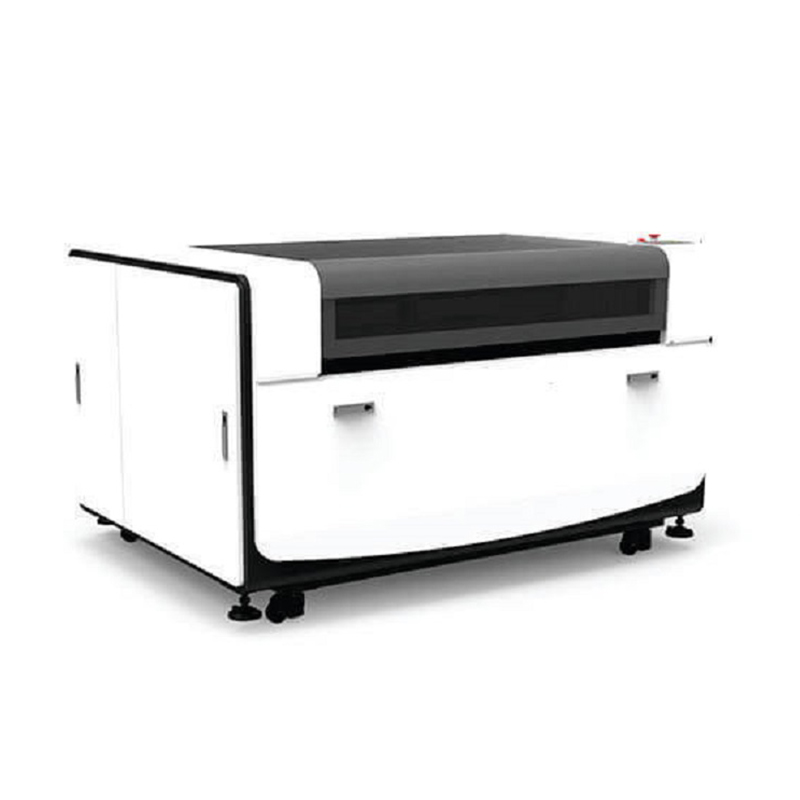

LS1390 laser engraving and cutting machine is used specially for the nonmetal art crafts, gifts and the engraving of bamboo products.
The mechanical structure is strong and stable, making the machine to run at high precision.
Applicable materials
Non-metal materials such as acrylic, double color board, Plexiglas,Common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.
Applicable industries
LS1390 has been widely used for engraving and cutting on nonmetal material, including Acrylic, Organic Glass, Crafts, Furniture, Glasses, Wood, PVC, Lightings, Advertising and decorating, pater, packaging lithography, mark plate, atomic stamp & seals, bamboo products, trademarks, embroidery, apparel and other industries. Adoptable for clothing tailoring, embroidery cutting, leather punch Pierced menthol cutting carving processing.
